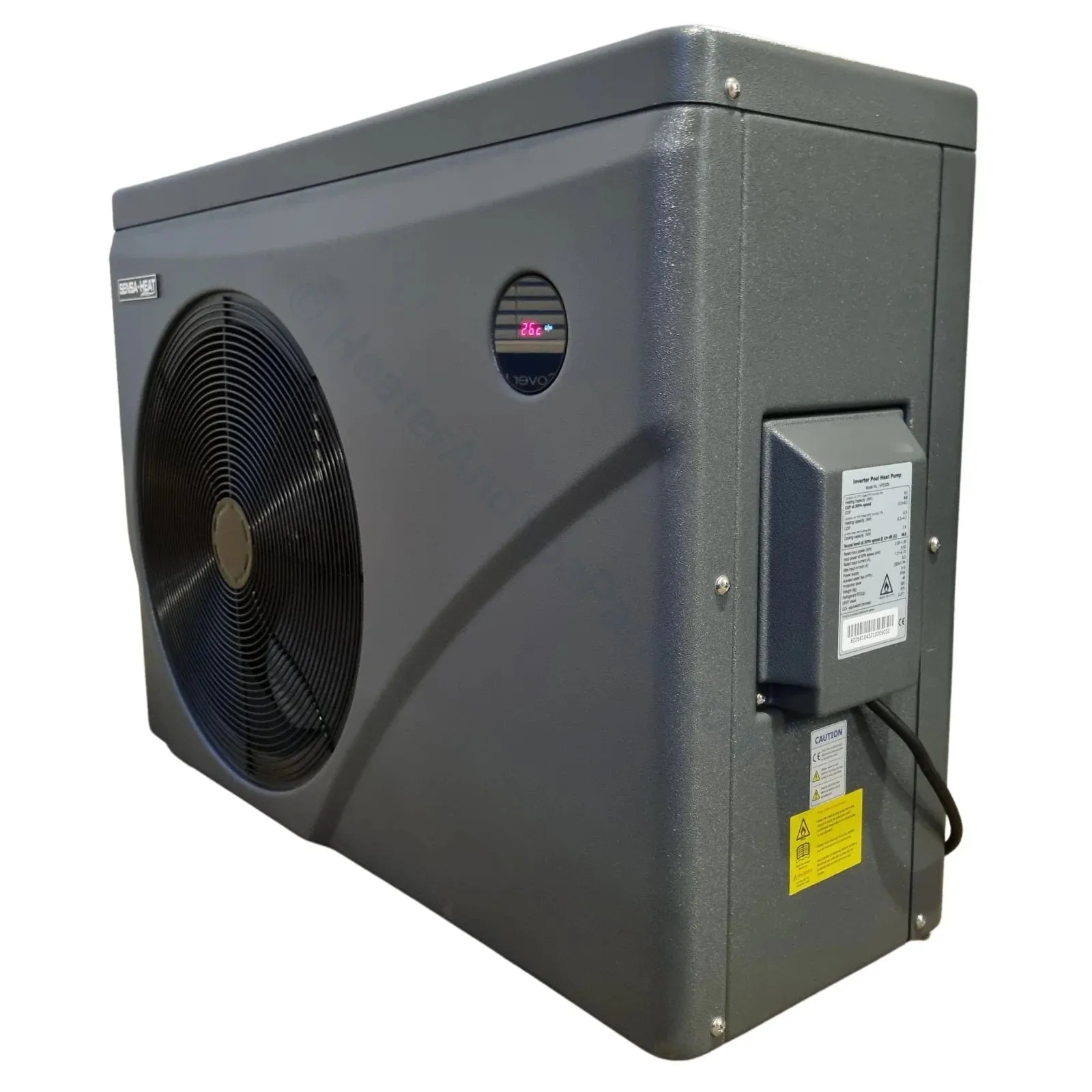

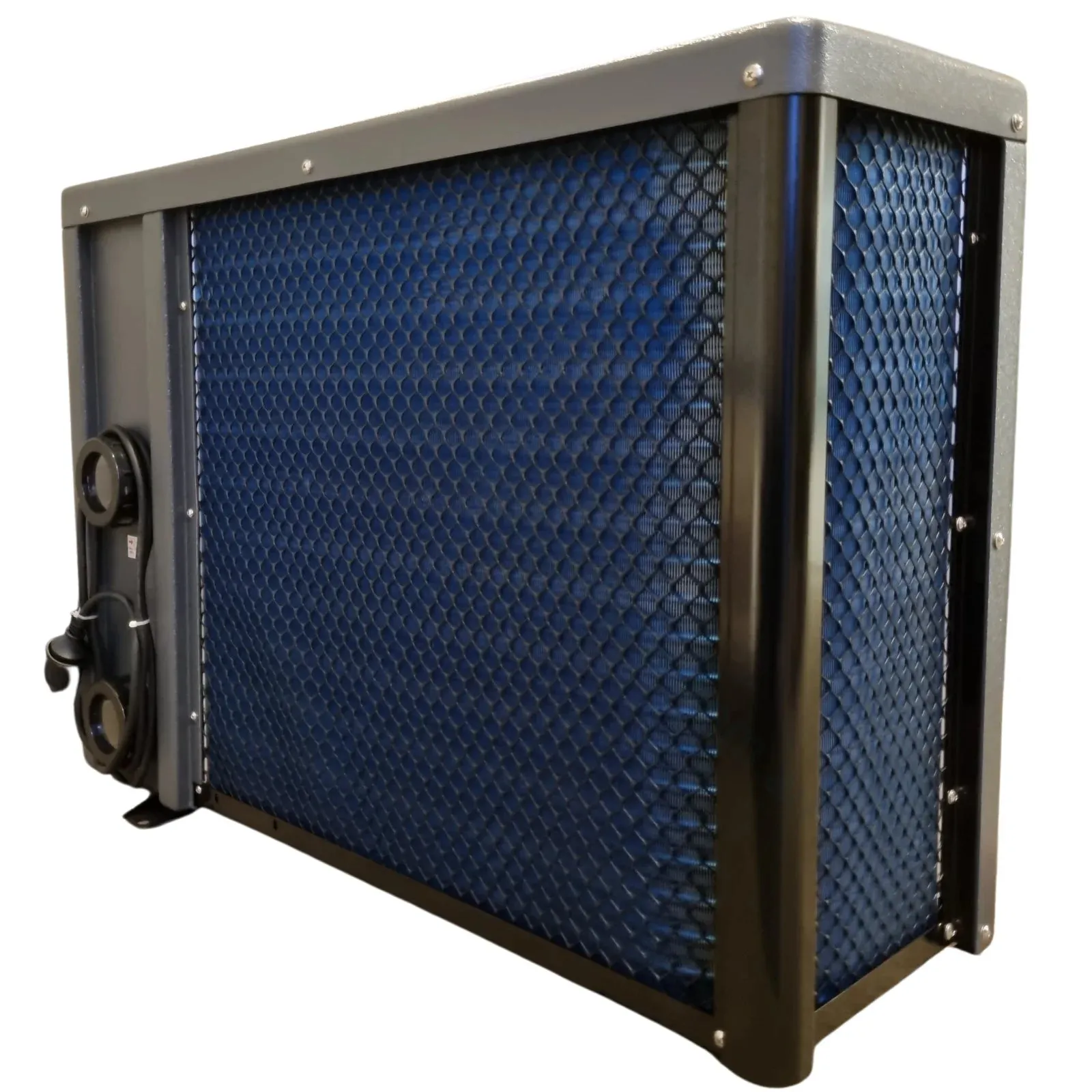

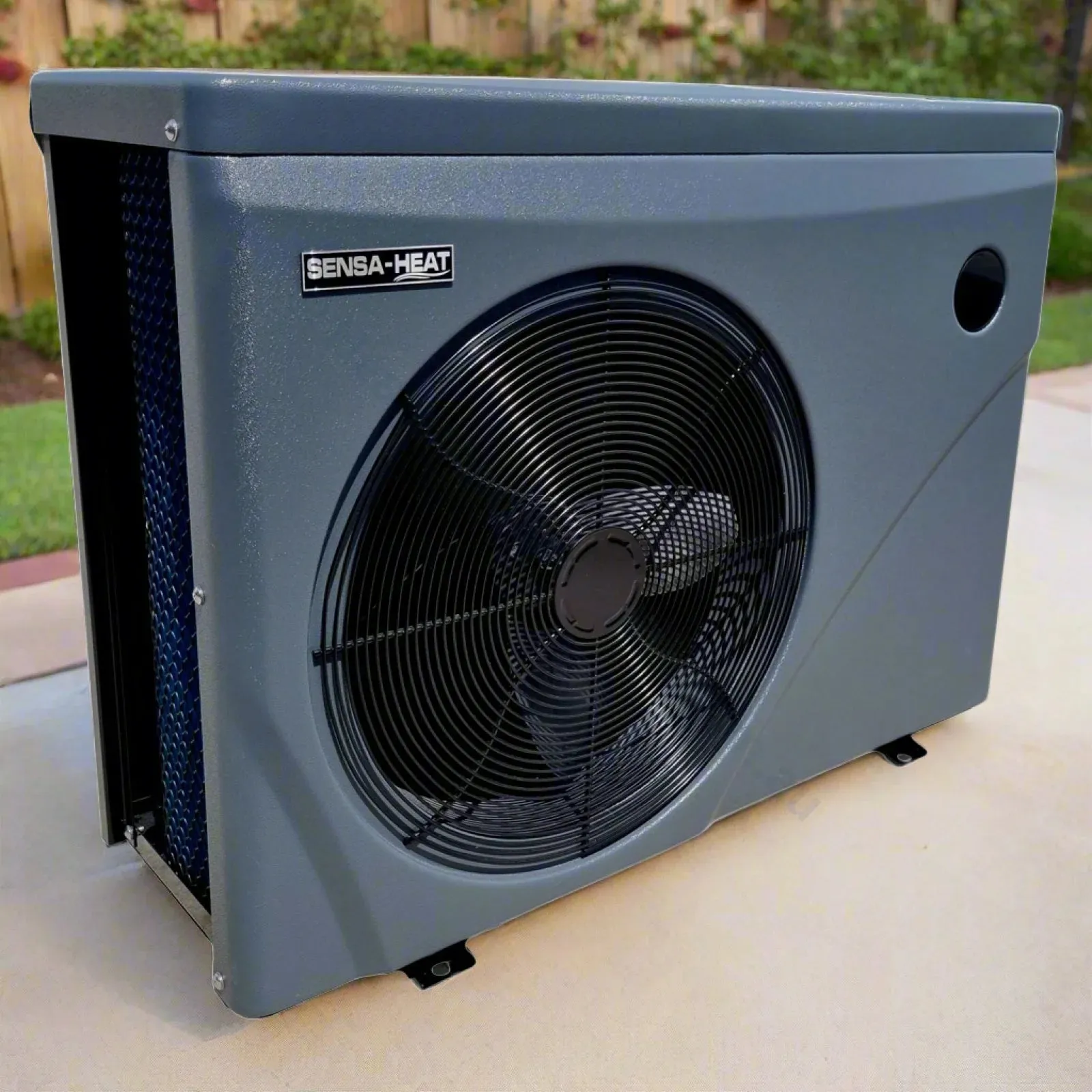

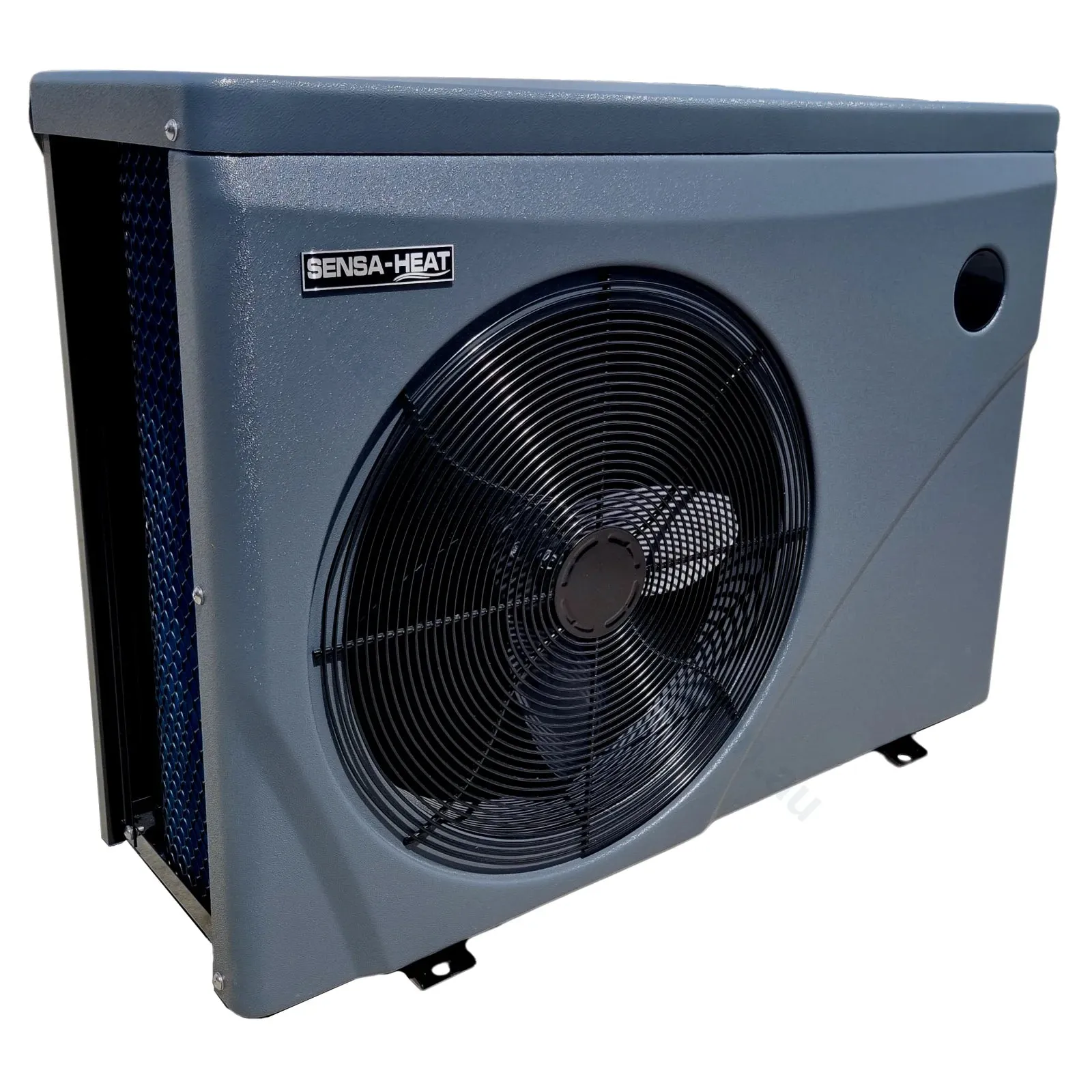

The SensaHeat ES Series delivers powerful, economical heating for pools and spas, backed by the largest OEM spa equipment distributor in Australia and New Zealand. Designed for efficiency, it’s perfect for extending your swimming season or keeping your spa or pool warm year-round.
Documentation:
Why Choose SensaHeat ES?
- Eco-Friendly Efficiency: Equipped with advanced inverter technology and environmentally friendly R32 refrigerant.
- Sizes to Suit Any Pool or Spa: Available in 9kW to 24kW models, tailored to your heating needs.
- Easy Integration and Automation: Control through compatible systems like Balboa, SpaNet, and Gecko (AEware) with the Sensaheat Relay Controller. Enjoy full automation with the optional Sensaheat Heat Pump Controller.
- Ready Access to Spare Parts: Supported by a vast distribution network across VIC, NSW, and WA.
Warranty Information
- Heat Exchanger: 25 Years
- Compressor: 3 Years
- Other Parts: 2 Years
- On-Site Labour: 1 Year (T&Cs apply)

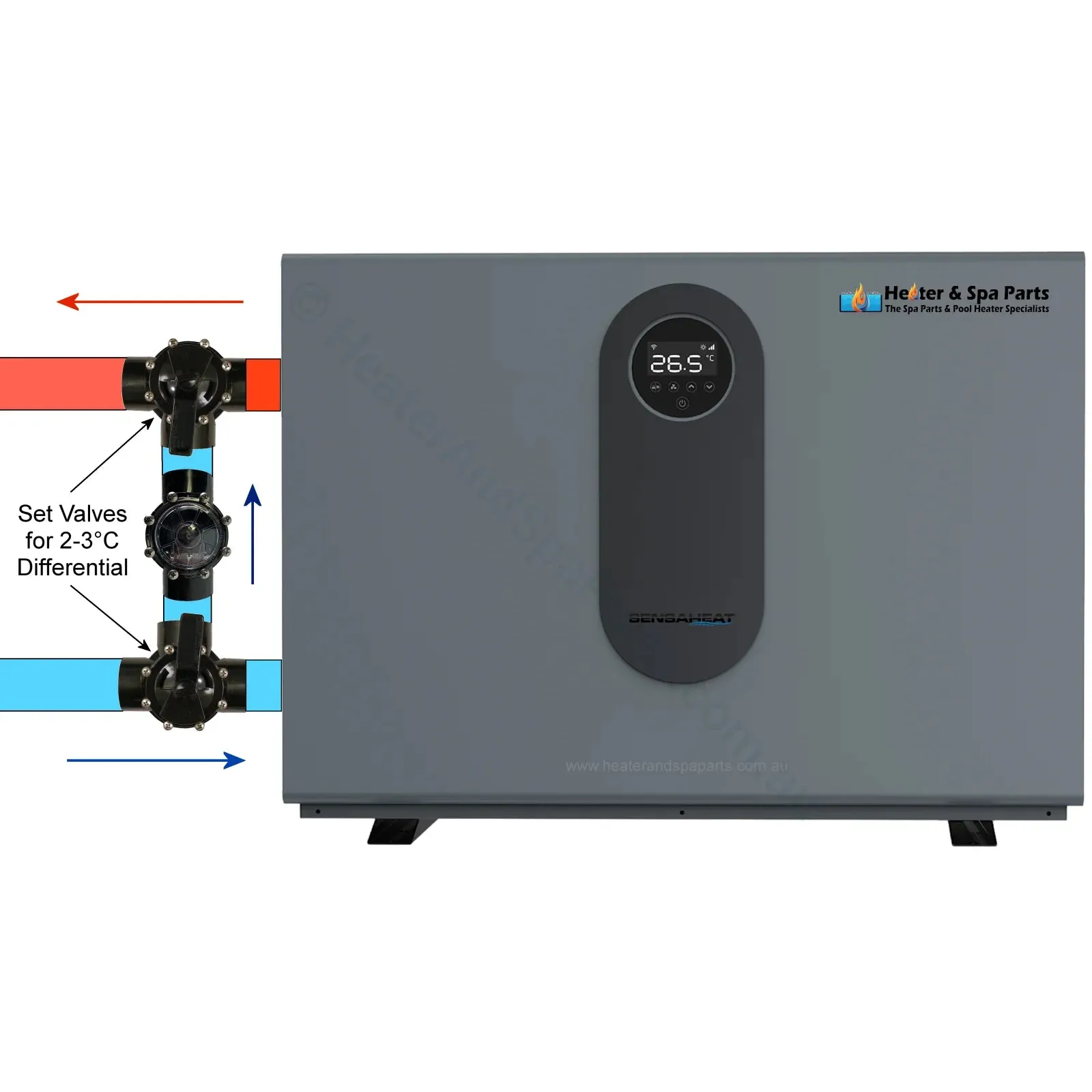

Special Offer: Get discounts on the 3-way valve kit and other add-ons when purchasing a SensaHeat ES Heat Pump!
Key Features:

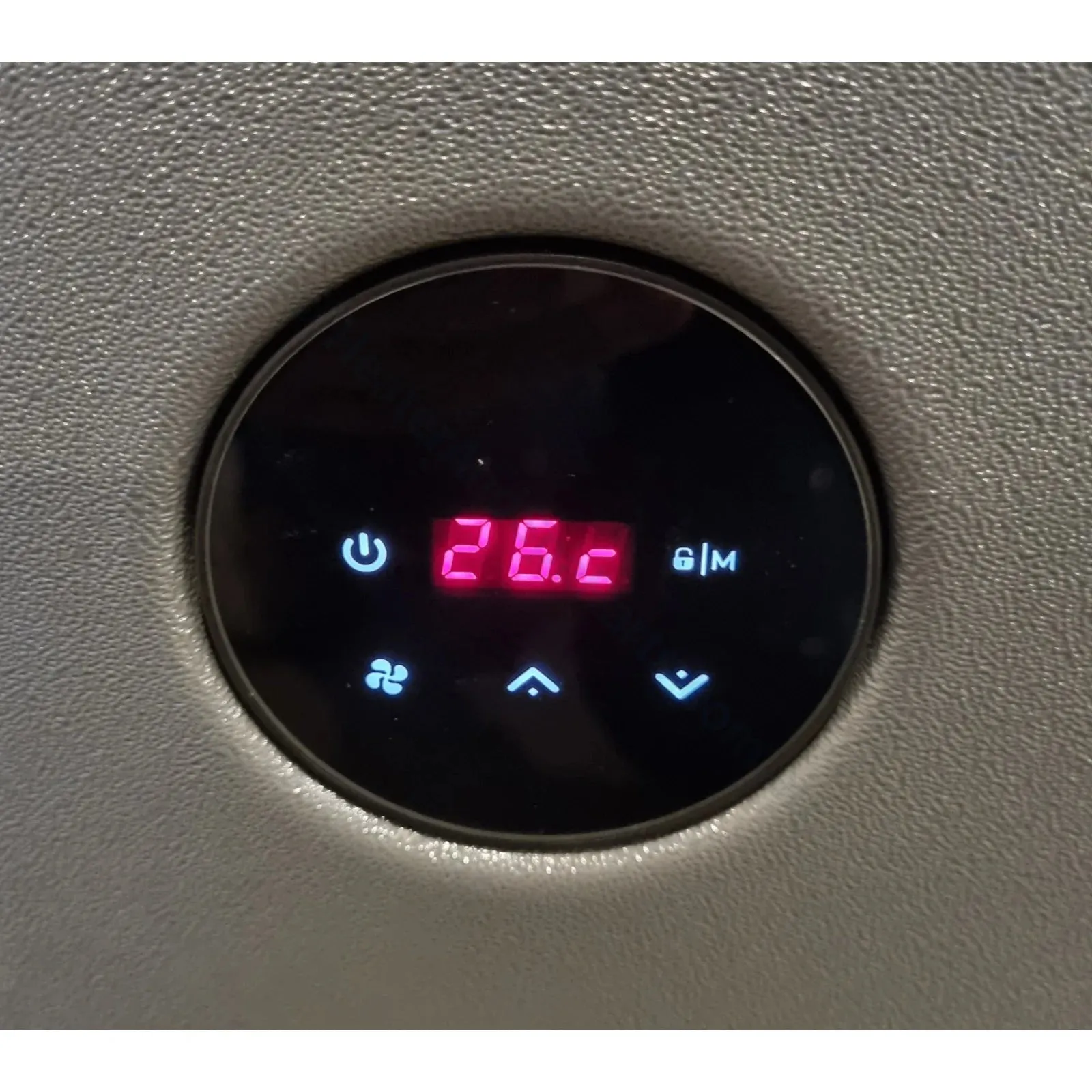

- Wifi Control as Standard: Monitor and adjust from anywhere.
- Quiet Operation with Inverter Technology: Runs up to 7x more efficiently than standard spa heaters.
- Reverse Cycle Heating & Cooling: With auto-defrost and stable DC inverter.
- Anti-Rust ABS Casing and Soft Start Technology: Reduces power demand at startup by up to 70%.
Performance and Technical Specifications
- COP Range Up to 11: High efficiency, adjusting heating capacity to match pool needs.
- Titanium Heat Exchanger: 40% higher efficiency than standard exchangers.
- Sound Level: Ultra-quiet, rated between 41-59 dB (at 1m).
- Advised Water Flow Rate: Varies by model, ranging from 50-200 lpm.
In Stock Now with Fast & Free Shipping Across VIC, NSW, and WA

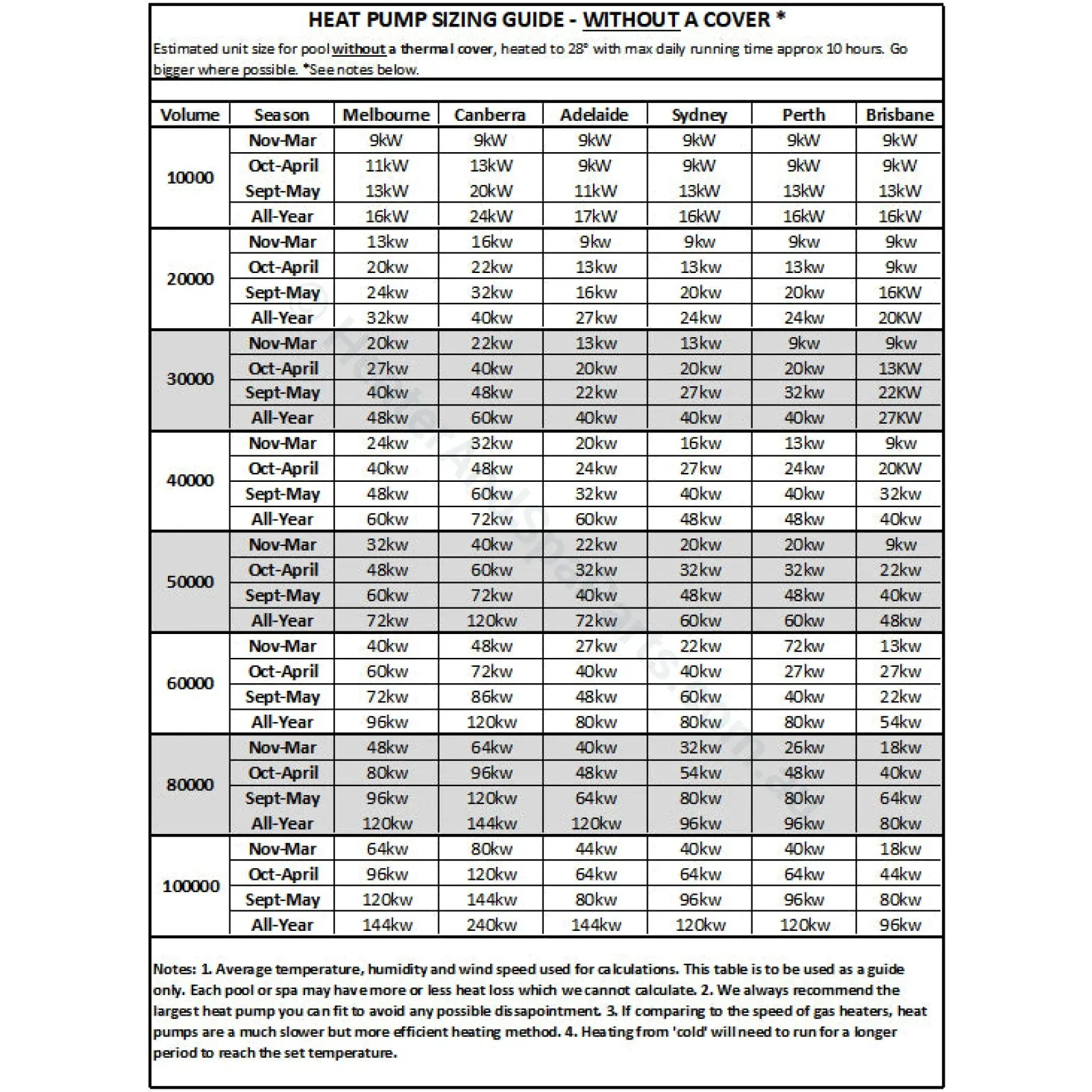

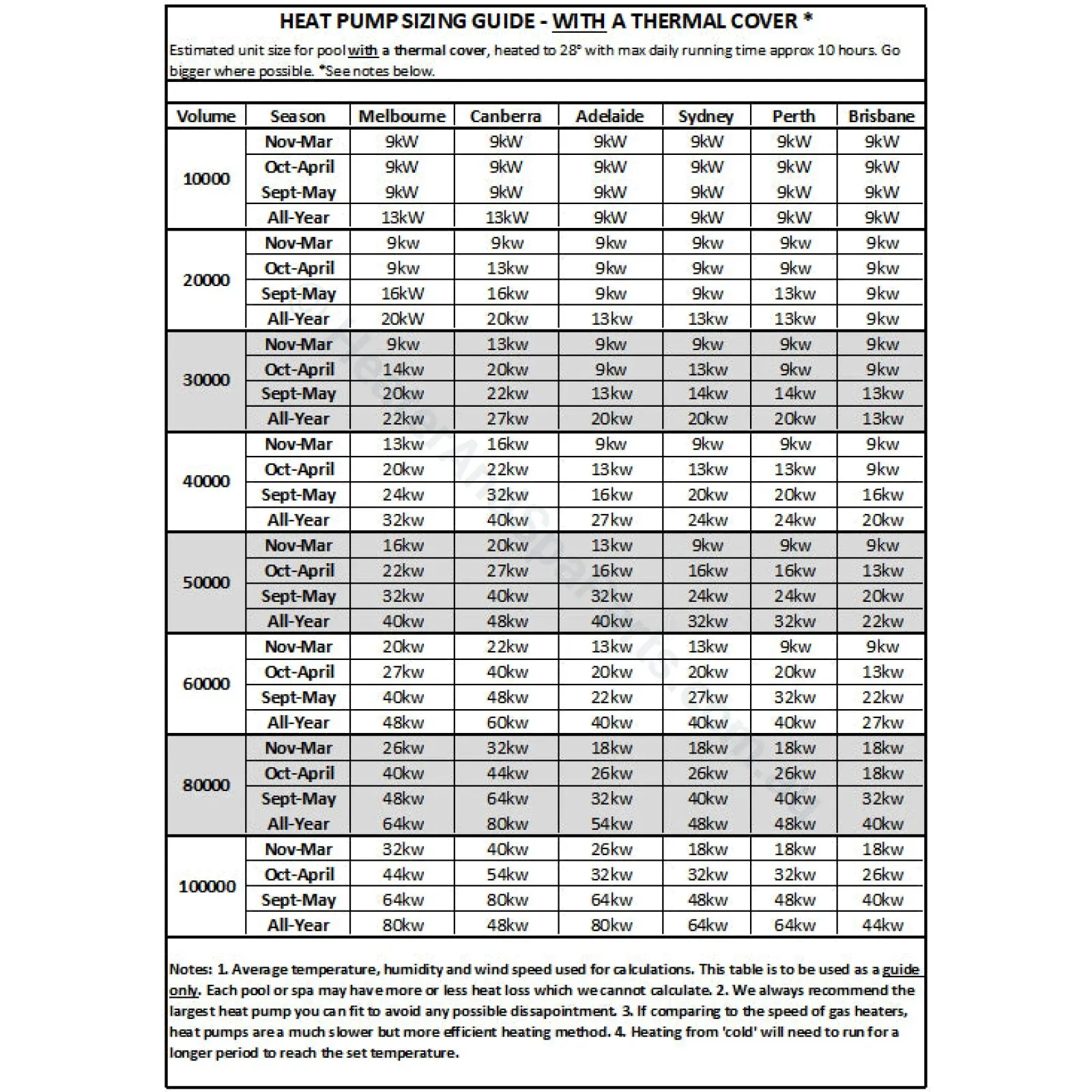

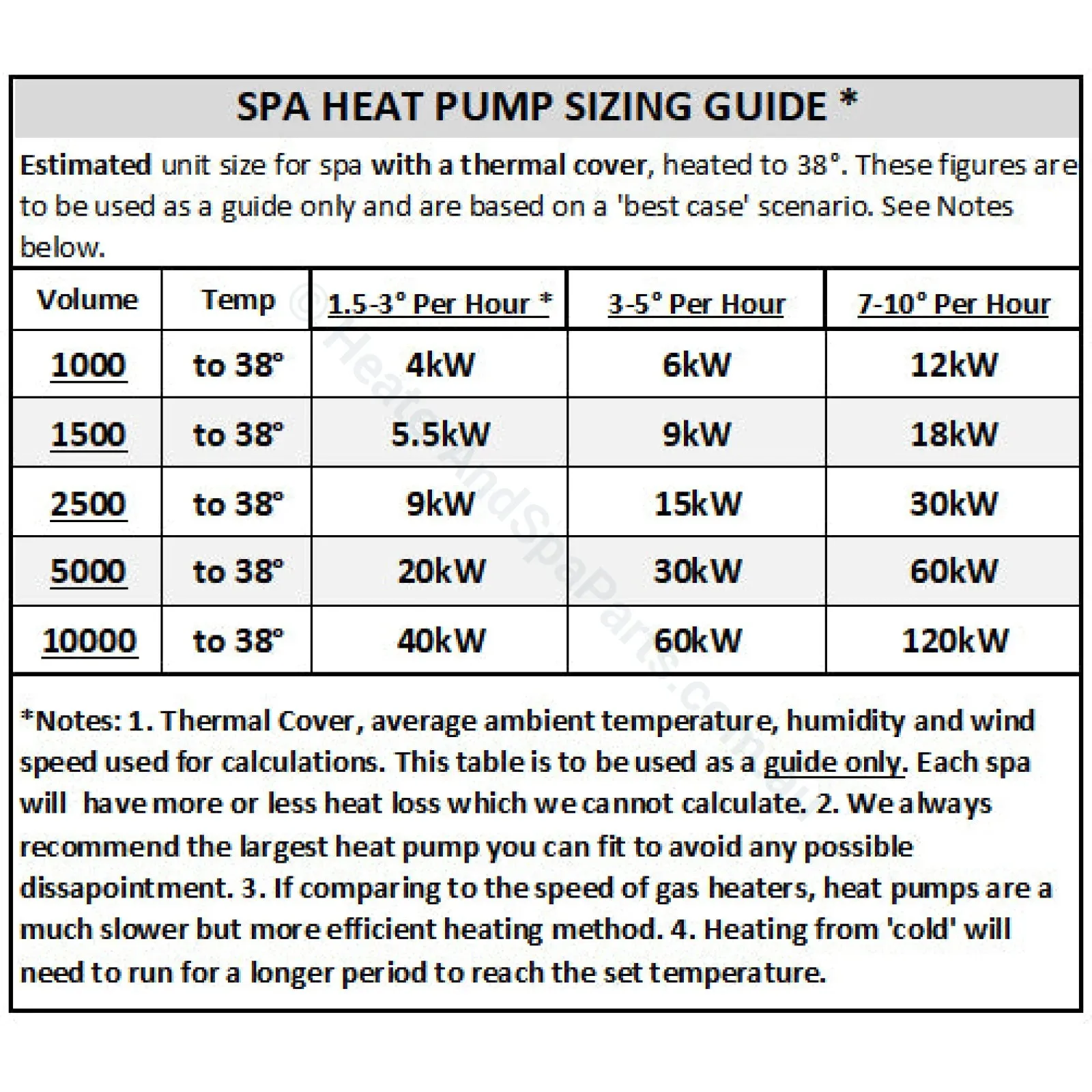

Evaluate Your Heating Needs: [Click Here for Our Heat Pump Calculator Form]
The SensaHeat ES series is a compact powerhouse for efficient, economical pool and spa heating. Consider sizing up for best results, and check out the PI for even more powerful options!

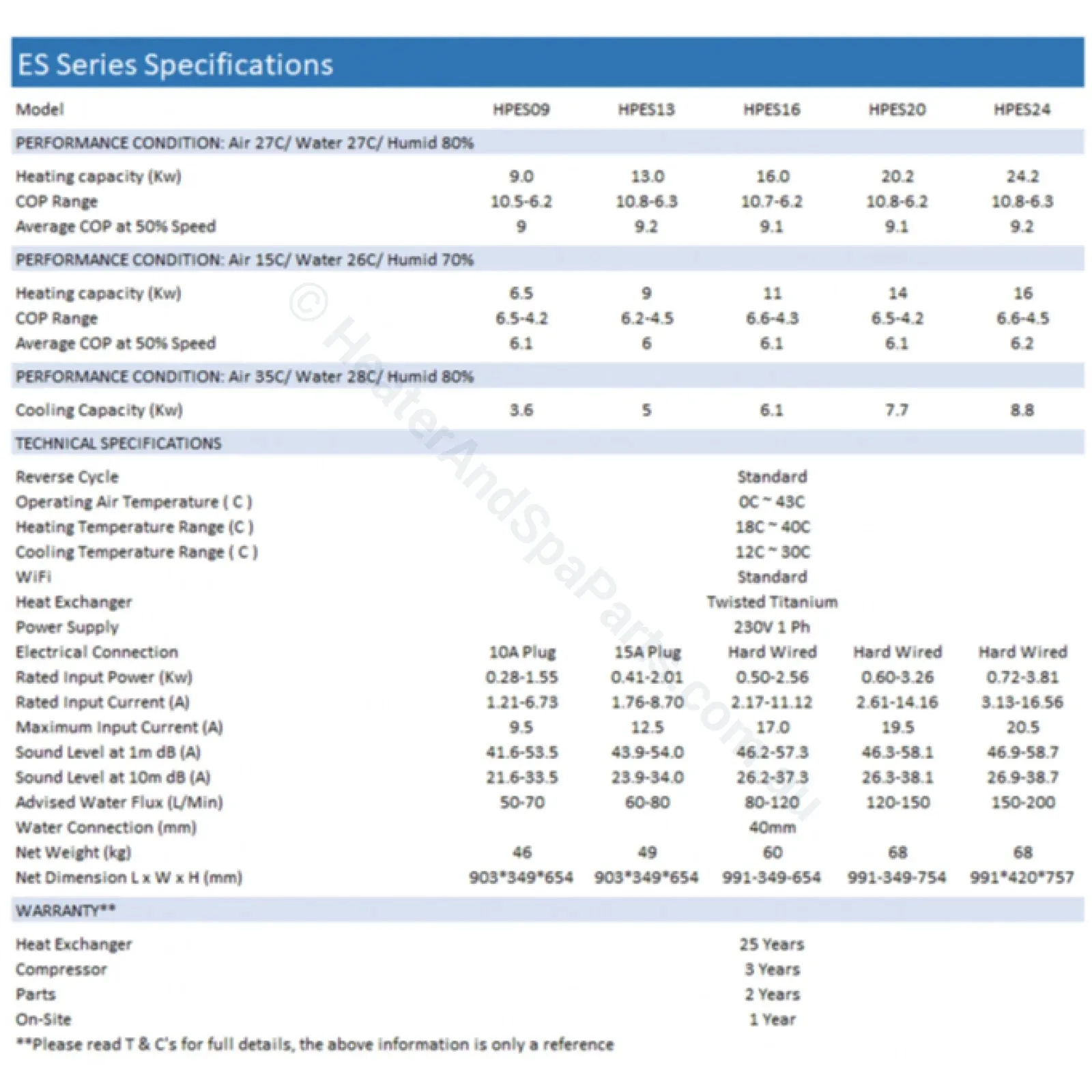

Details & More Information:
| Model | HPES09 | HPES13 | HPES16 | HPES20 | HPES24 |
| PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humid. 80% | |||||
| Heating capacity | 9.0kW | 13.0kW | 16.0kW | 20.2kW | 24.2kW |
| COP Range | 10.5~6.2 | 10.8~6.3 | 10.7~6.2 | 10.8~6.2 | 10.8~6.3 |
| Average COP at 50% Speed | 9 | 9.2 | 9.1 | 9.1 | 9.2 |
| PERFORMANCE CONDITION: Air 15°C/ Water 26°C/ Humid. 70% | |||||
| Heating capacity | 6.5kW | 9.0kW | 11.0kW | 14.0kW | 16.0kW |
| COP Range | 6.5~4.2 | 6.2~4.5 | 6.6~4.3 | 6.5~4.2 | 6.6~4.5 |
| Average COP at 50% Speed | 6.1 | 6 | 6.1 | 6.1 | 6.2 |
| TECHNICAL SPECIFICATIONS | |||||
| Operating air temperature | 0℃~43℃ | ||||
| Heat exchanger | Twisted Titanium Heat Exchanger | ||||
| Power supply | 230V/1 Ph/50Hz | ||||
| Rated input power | 0.28~1.55kW | 0.41~2.01kW | 0.50~2.56kW | 0.60~3.26kW | 0.72~3.81kW |
| Input power at 50% Speed | 0.53kW | 0.75kW | 0.9kW | 1.15kW | 1.29kW |
| Rated input current | 1.21~6.73A | 1.76~8.70A | 2.17~11.12A | 2.61~14.16A | 3.13~16.56A |
| Maximum input current | 8A | 12.5A | 17A | 19.5A | 20A |
| Sound level at 1m dB(A) | 41.6~53.5 | 43.9~54.0 | 46.2~57.3 | 46.3~58.1 | 46.9~58.7 |
| Sound level by 50% speed 1m dB(A) | 46.8 | 49.5 | 49.7 | 50.6 | 51.1 |
| Sound level at 10m dB(A) | 21.6~33.5 | 23.9~34 | 26.2~37.3 | 26.3~38.1 | 26.9~38.7 |
| Advised water flow rate | 50-85lpm | 65-100lpm | 100-135lpm | 115-170lpm | 165-200lpm |
| R32 gas weight | 550g | 900g | 1000g | 1100g | |
| Net dimension LxWxH (mm) | 864*359*648 | 864*359*648 | 954*359*648 | 954*359*748 | 954*429*755 |
| Net Weight | 47kg | 49kg | 60kg | 68kg | 65kg |
| Remarks: * The data above is only for reference. For specific data, please refer to the nameplate on the unit. | |||||
